Sindie R3 sulfur analyzer




Sindie R3

Analyze Sulfur with Unparalleled Precision

Easier to use than ever, Sindie R3 is our advanced sulfur analytical solution for compliance with ASTM D2622, ASTM D7039, and ISO 20884 methods, enabling complete flexibility for your analytical needs. Advanced R3 optics provide low limits of detection, allowing for cycle time flexibility to save hours per day in testing time. *



Try the Simulator

Get the Details

Product Details

Applications

  • Petroleum products (diesel, jet, kerosene, other distillate oil, naphtha, residual oil, lubricating base oil, hydraulic oil, crude oil, gasoline, gasoline-ethanol blend, coal, and petroleum cokes).
  • First and second-generation biofuels (biodiesel, ethanol, renewable diesel, HVO, SAF).
  • Edible oils and fats (UCO, tallow, palm oil, corn oil, soybean oil, etc.)
  • Chemicals (toluene, xylene, methanol, benzene, etc).
  • Water

Features

  • LOD: 0.18 mg/kg (ppm) at 300s, 0.15mg/kg (ppm) at 600s**
  • Dynamic Range: 0.18 mg/kg (ppm) - 10 wt%)
  • Advanced R3 optics allow for optional lower background measurement time.
  • Easy to use
    • Intuitive 10-inch touch screen
    • Just plug in and measure
    • Measurement time: 10-999 s
  • Low and high range calibrations available:
    • Low range: 0.18 mg/kg (ppm) – 3000 mg/kg (ppm)
    • High range: 0.3 wt% - 10 wt%
  • Low maintenance: no gasses, heating elements, columns, or quartz tubing
  • Traditional 43 mm XRF sample cups or XOS Accucells – decided at time of order
  • Small footprint

Two Sindie R4 analyzers

Specifications

Model
Sindie R3
Test Method
ASTM D7039, D2622 and ISO 20884
Dimensions
42 cm (h) x 40 cm (w) x 54 cm (d)
16.5 in (h) x 15.8 in (w) x 21 in (d)
Power
100-120 VAC, 47-63 HZ at 5.0 Amps
200-240 VAC, 47-63 HZ at 2.5 Amps
Minimum Sample Cup Volume
Traditional - 5 ml, Accucells - 1 ml
Ambient Temperature Requirements
5-40° C (40-104° F)
Optical Path
Vacuum
Excitation Source
75 W air-cooled



Contact Us

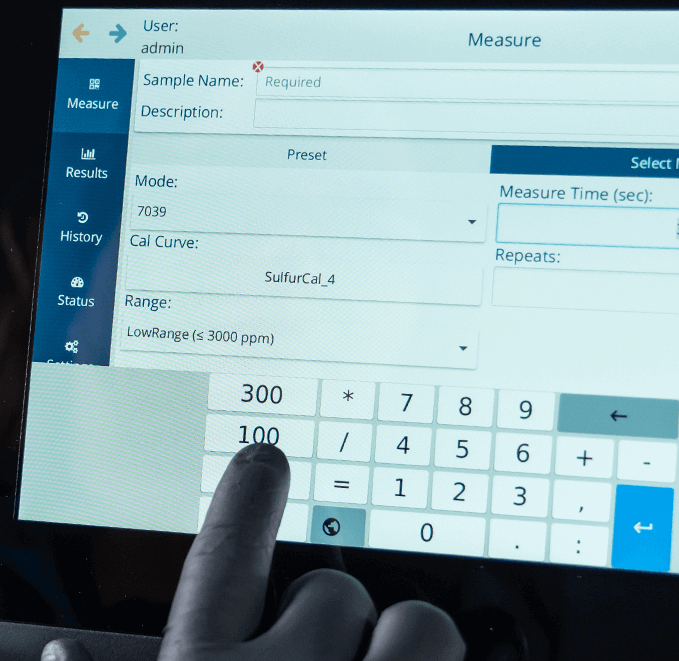

lab technician using touch screen

* All qualification herein is subject to user guide specifications.

* Longer cycle time increases counts and lower LOD, but sample condition over time needs to be considered.
